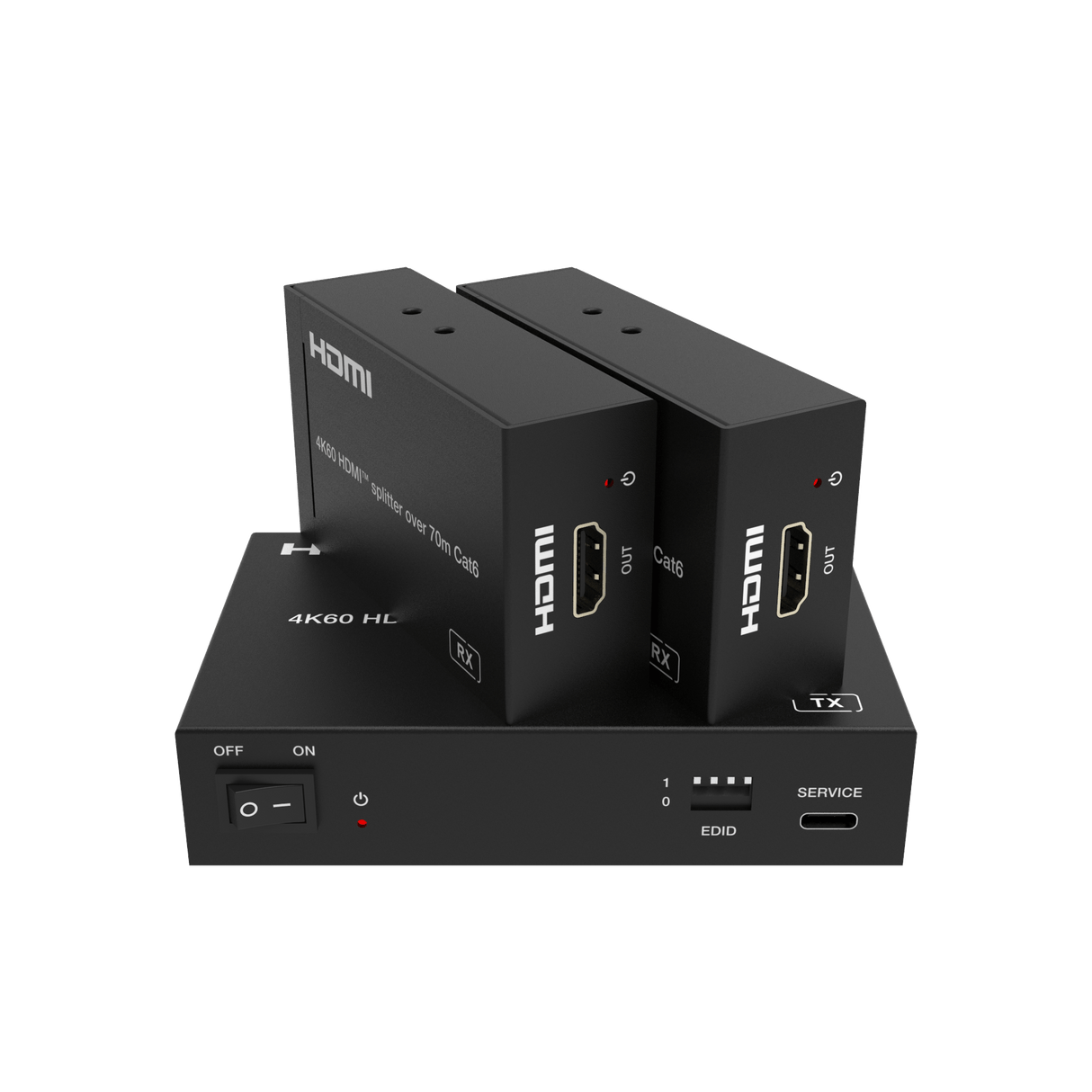

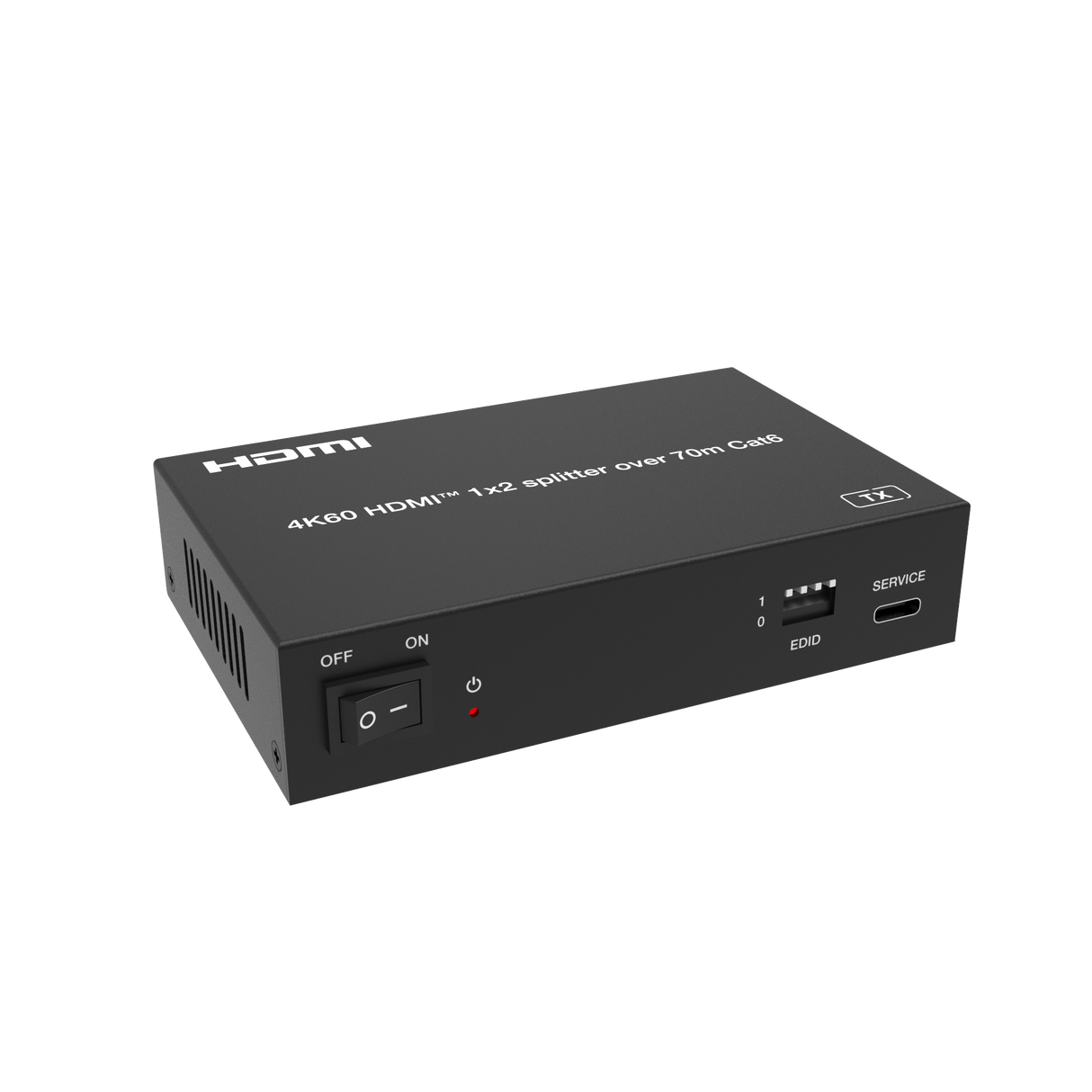

SX230 HDMI 2.0 Splitter 1 In 2 Out over Lan Extender 60m | Loop Out | 4K 6Hz | POC


€169,00
Tax included Shipping calculated at checkout.

Fast, free shipping in Germany

Free delivery within Germany for orders over €39, under €4.99. Receive your order in 1-3 working days via DHL or DPD.

For deliveries within Europe we ship free of charge for orders over 150 €, with delivery within 5 days.

You will receive the shipping status conveniently via email with a tracking link.

To receive your shipment at a DHL Packstation , please include your first and last name, your postal code and the Packstation in the delivery address.

You can find further information about shipping here .

Uncomplicated returns & right of return

Buy without risk : easy return process and full right of return in case of dissatisfaction.

You have a 30-day right of return with us.

In the event of a return, we will refund the costs or arrange for the return to be free of charge. Further information on returns or refunds .

German company with personal service

FeinTech is a German company based in the Spreewald. We stand for innovative technology and personal service - if you have any questions or problems, we are there for you. Contact us by phone or email - we will help you quickly and easily.

2-year warranty on all products

FeinTech stands for quality. That's why we offer you a 2-year guarantee on all products.

Are you still unsure if it is the right solution for you? Contact us ! We are here to help you.

Does your company need a technology upgrade?
We make sure that your company is well equipped. Write to us and let us find the ideal solution! Inquire now

That's why we love this product

Scope of delivery

Pay securely

Payment Methods

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store any credit card details and do not have access to your credit card information.

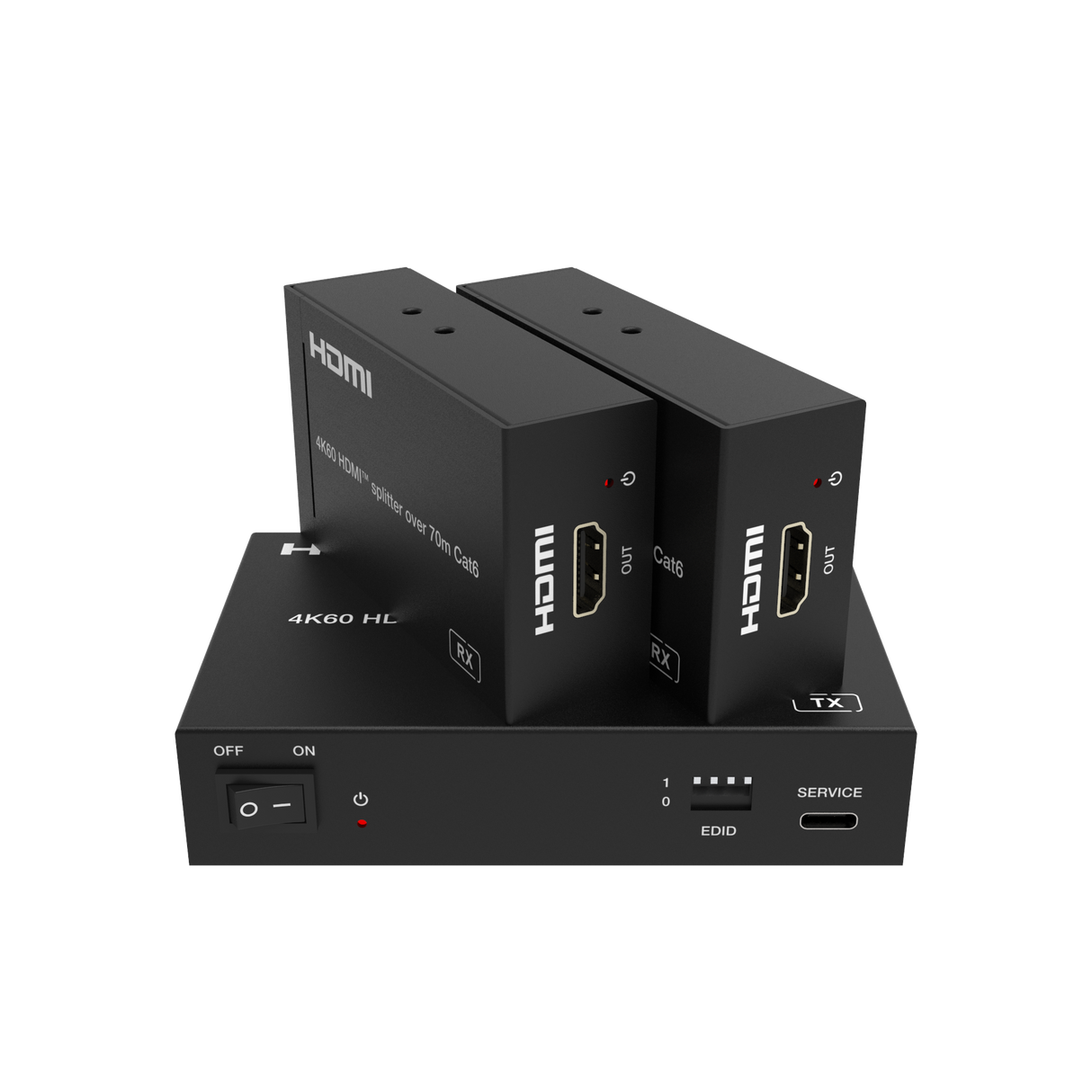

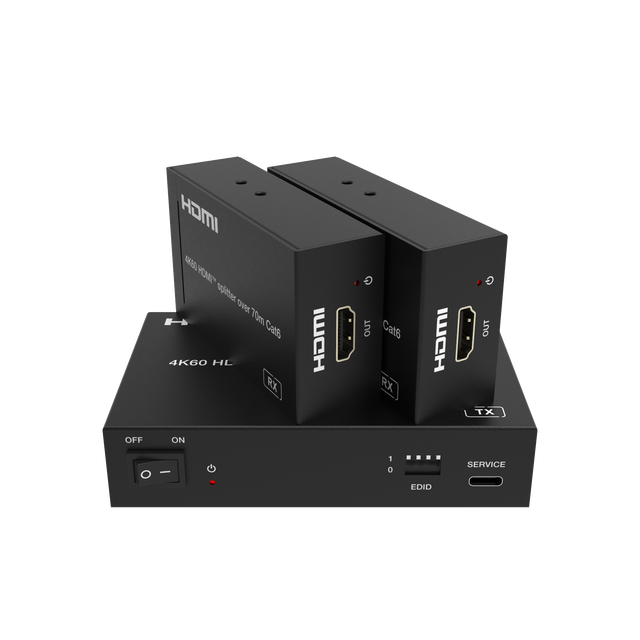

Der FeinTech SX230 HDMI 2.0 Splitter 1×2 mit Extender ist die ideale Lösung für alle, die ein hochauflösendes HDMI-Signal auf mehrere Bildschirme über große Distanzen verteilen möchten – ohne Qualitätseinbußen. Das Set besteht aus einem Transmitter, zwei Receivern und einem Netzteil und ermöglicht die verlustfreie, latenzfreie Übertragung von Audio- und Videosignalen in 4K-Qualität über handelsübliche Netzwerkkabel (CAT6/7).

Hauptmerkmale:

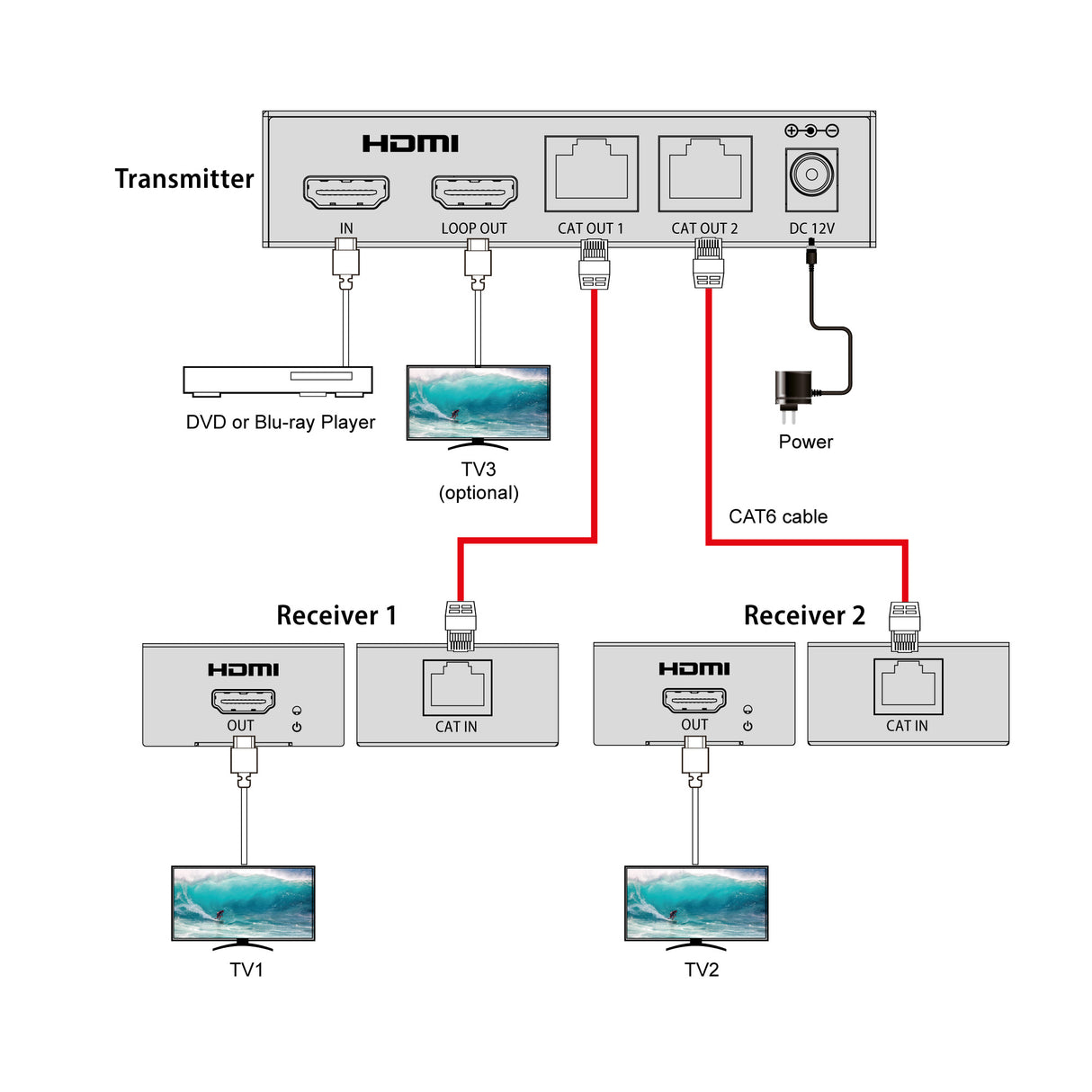

  • Verteilung auf bis zu 3 Displays gleichzeitig: Das HDMI-Signal wird am Transmitter lokal durchgeschleift (Loop-Out) und gleichzeitig an zwei weitere Empfänger über Netzwerkkabel gesendet – ideal für den gleichzeitigen Betrieb von Fernseher, Beamer und AV-Receiver.
  • Große Reichweite mit bester Qualität:
    • Bis zu 70 Meter bei 4K/30Hz
    • Bis zu 60 Meter bei 4K/60Hz

  • Flexible EDID-Steuerung: 16 auswählbare EDID-Modi ermöglichen ein gezieltes Management der Audio- und Videoformate, passend für unterschiedliche Anforderungen und Endgeräte.
  • Einfache Installation & Stromversorgung: Nur ein Netzteil ist notwendig – das vereinfacht die Einrichtung und reduziert den Kabelaufwand.
  • Volle HDMI 2.0-Unterstützung: Unterstützt UHD-Auflösungen bis 4K@60Hz mit  HDR oder  Dolby Vision, für ein beeindruckendes Heimkino- oder Präsentationserlebnis.

Technische Daten:

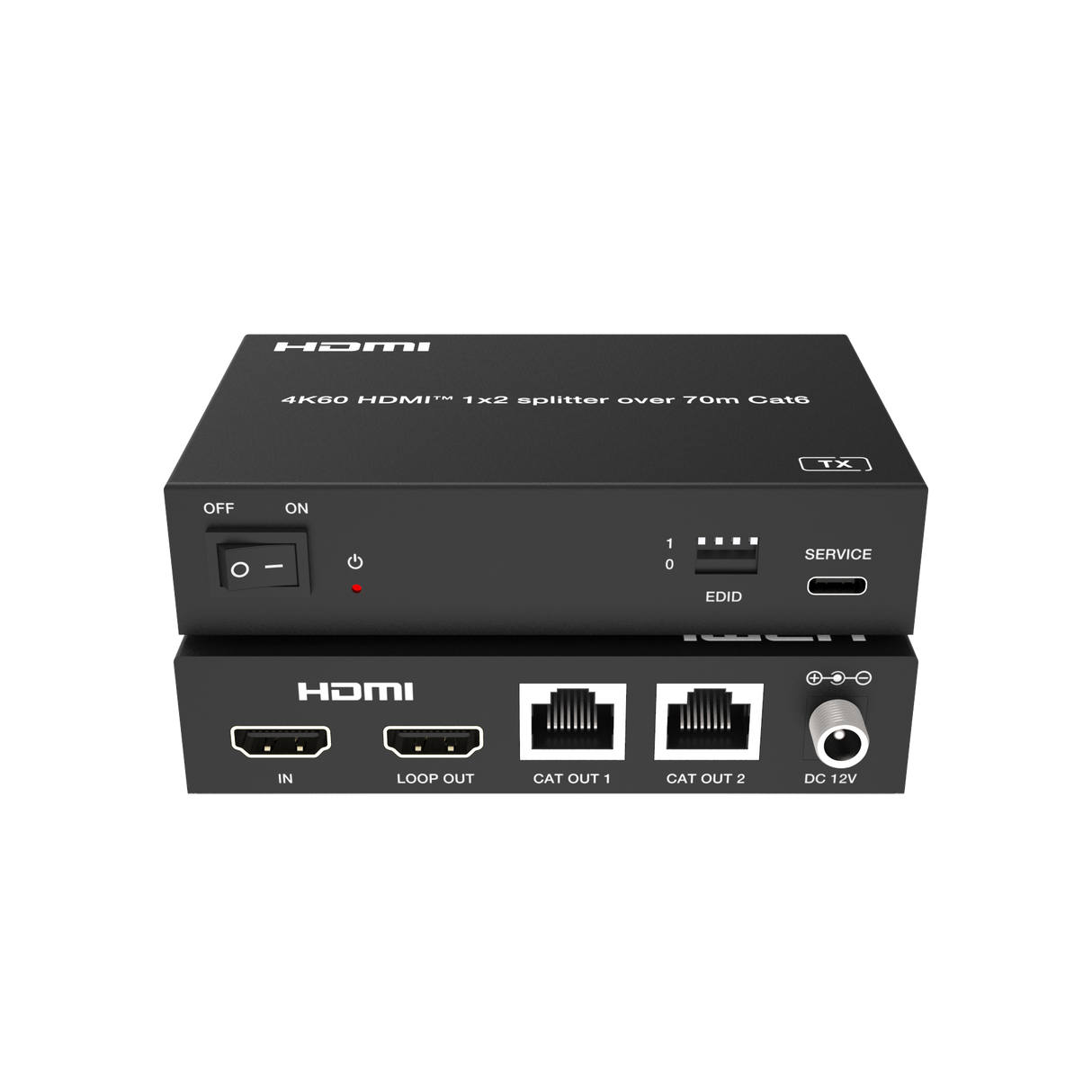

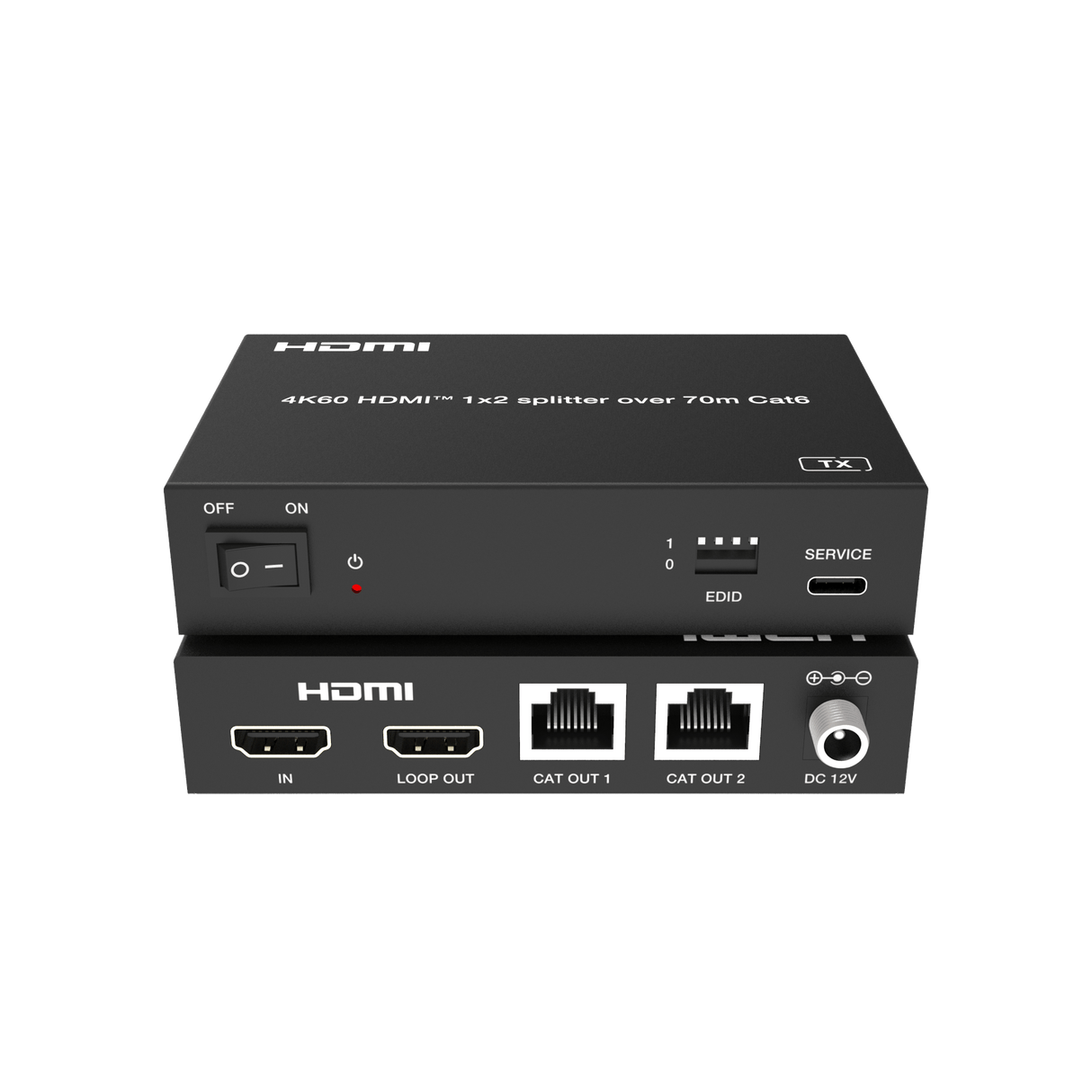

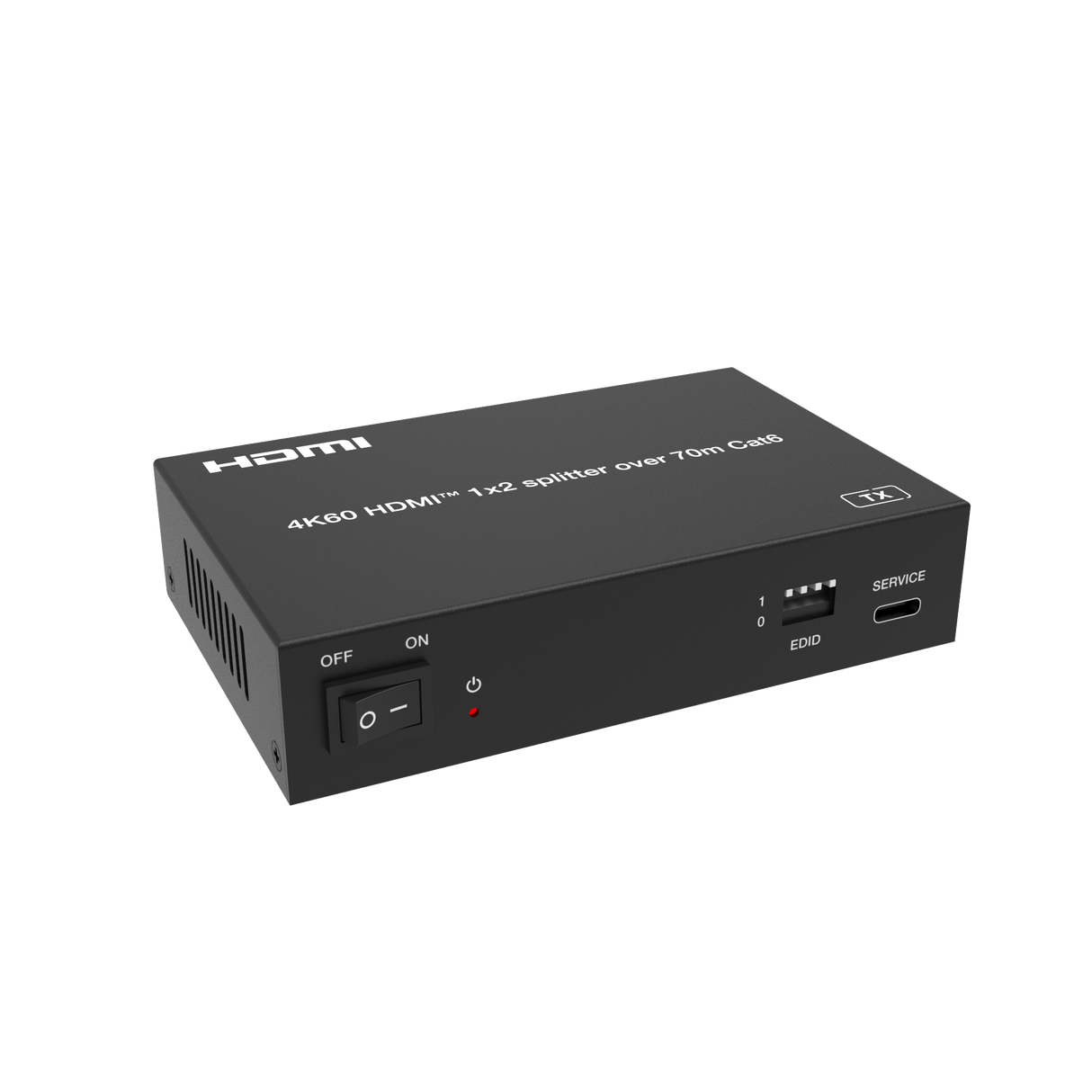

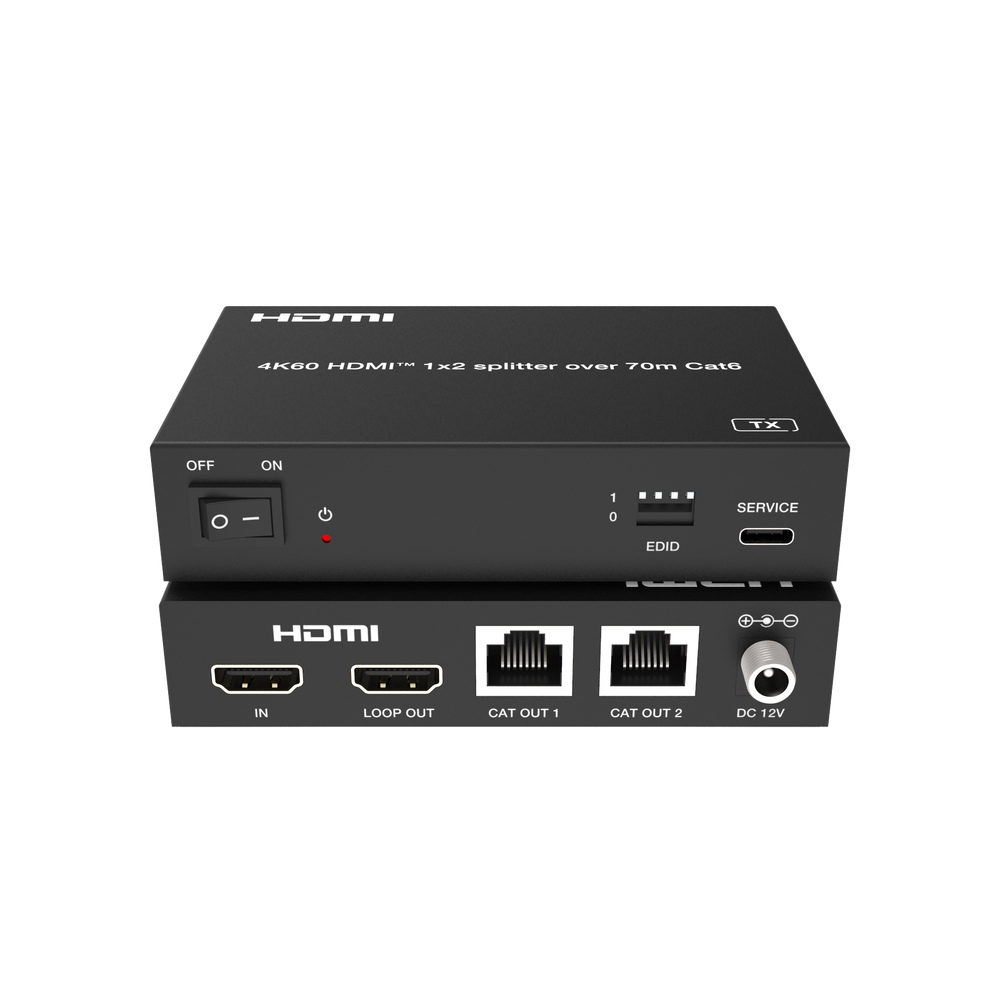

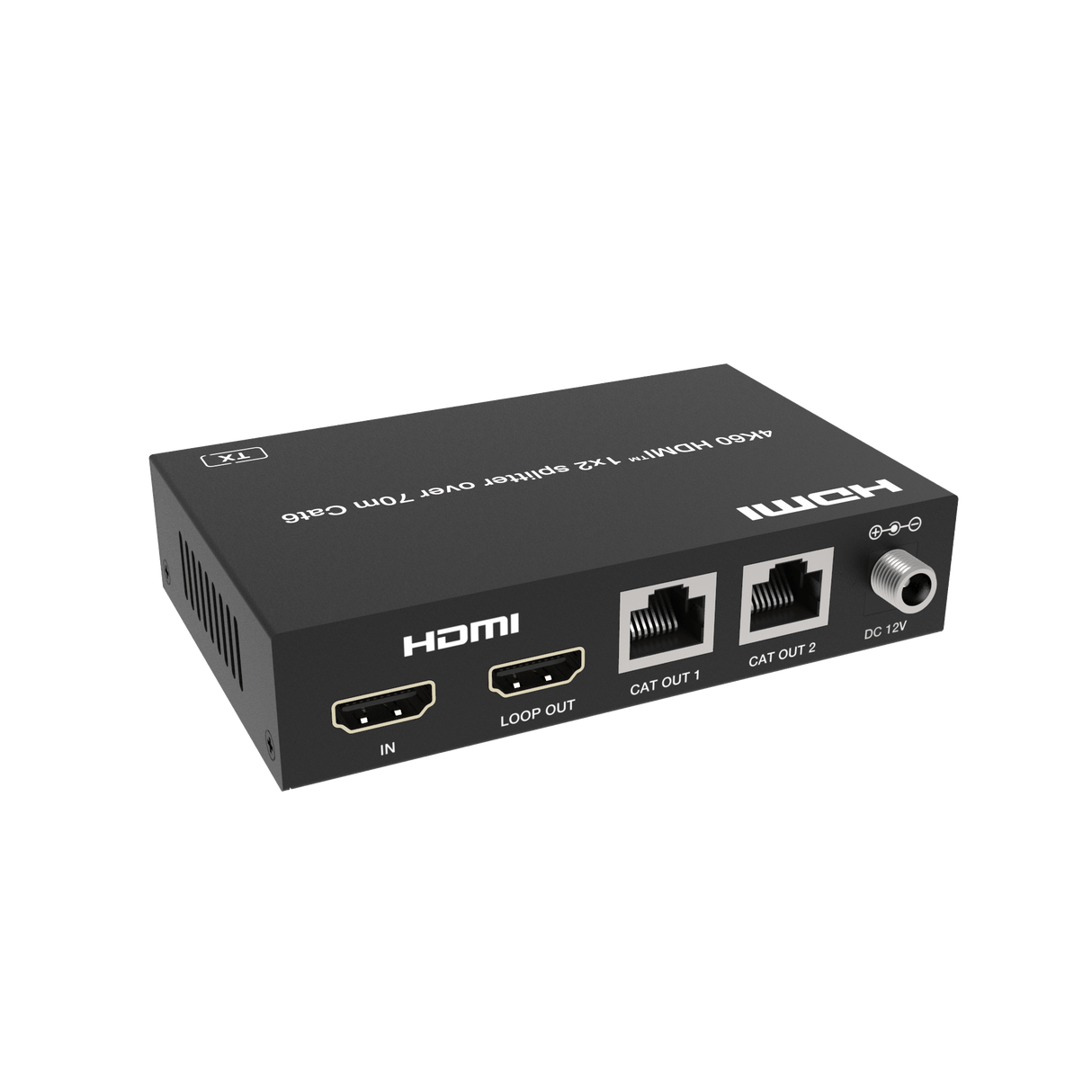

  • Eingang: 1× HDMI (Transmitter)

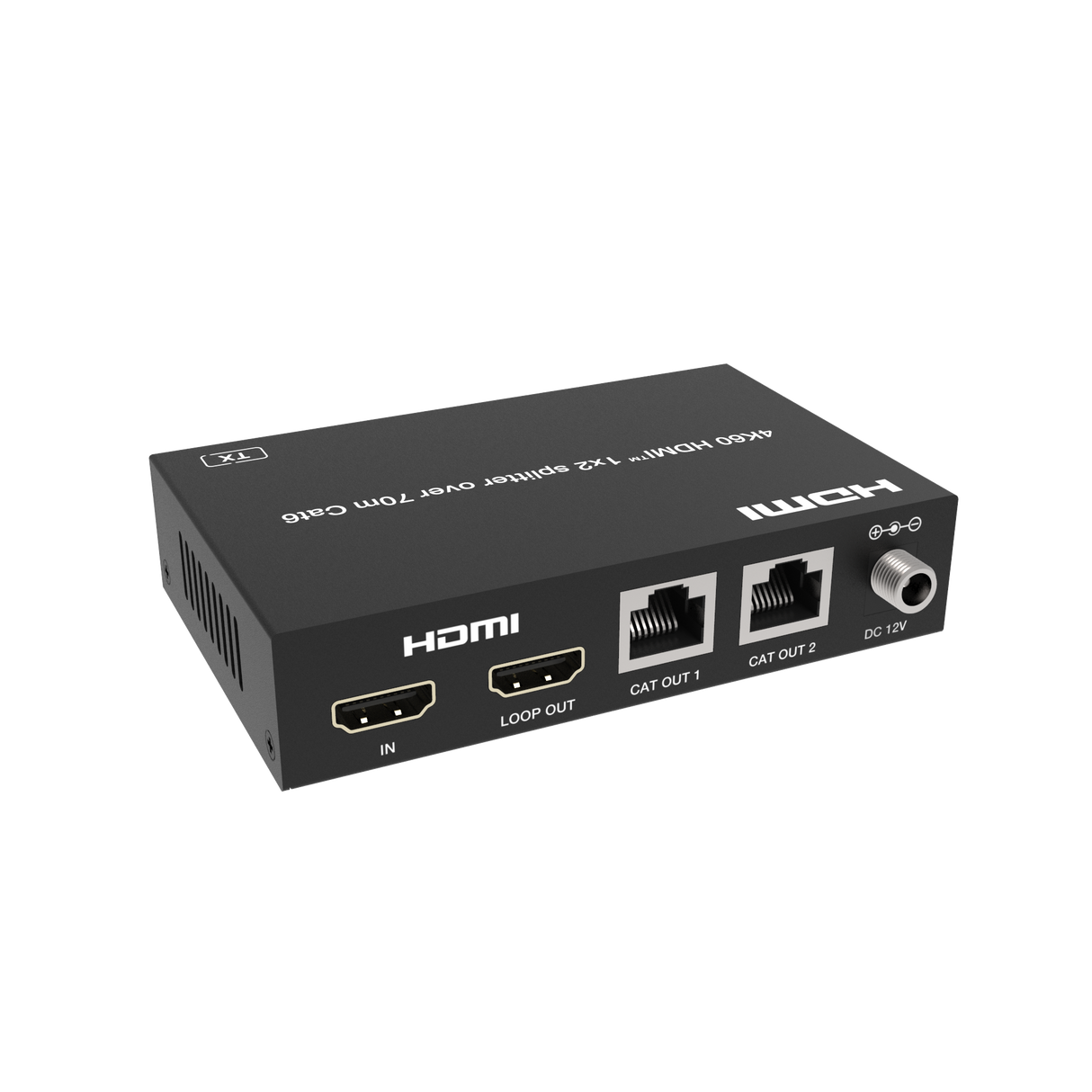

  • Ausgänge: 1× HDMI (Loop-Out am Transmitter), 2× RJ45 (CAT6/7 zu Receivern)
  • Receiver-Ausgänge: je 1× HDMI
  • Kompatibel mit allen gängigen HDMI-Geräten (z. B. Blu-ray-Player, Spielkonsolen, Streaming-Boxen)
  • Unterstützte Formate: 4K@60Hz (YUV 4:4:4), HDR10, HDR10+, Dolby Vision, HDCP 2.2
  • Plug & Play – keine Softwareinstallation nötig

Ideal für:

  • Heimkino-Setups
  • Schule und Präsentationsräume
  • Digital Signage Anwendungen
  • Messen und Ausstellungen

Mit dem FeinTech SX230 holst du dir eine zuverlässige und leistungsstarke HDMI-Splitterlösung, die sowohl durch einfache Handhabung als auch durch technische Raffinesse überzeugt.

Spezifikationen:

  • HDMI 2.0b
  • HDCP-Konformität HDCP 2.2 (abwärtskompatibel)
  • Maximale Datenrate 18 Gbps
  • Videoauflösungen 480i60, 576i50, 480p60, 576p50, 720p50/60, 1080i50/60, 1080p24/25/30/50/60, 640x480@60, 1024x768@60, 1280x768@60, 1280x800@60, 1280x1024@60,1360x768@60, 1440x900@60, 1680x1050@60, 1920x1200@60, 3840x2160@24/25/30/50/60, 4096x2160@24/25/30/50/60
  • Farbformate & -tiefe  1080p 8-bit / 10-bit / 12-bit (YUV 420, 422, 444, RGB), 4K 8-bit (YUV 420, 422, 444, RGB), 4K 10-bit (YUV 422, 420), 4K 12-bit (YUV 422, 420)
  • HDR10, HDR10+, Dolby Vision, HLG
  • Audioformate (Loop Out): PCM 2.0–7.1, Dolby Digital, Dolby Digital Plus (inkl. Atmos), Dolby TrueHD (incl. Atmos), Dolby MAT, DTS, DTS-HD, DTS-X, DSD
  • Audioformate (Receiver): PCM 2.0, Dolby Digital, Dolby Digital Plus (inkl. Atmos),  DTS
  • Reichweite mit CAT6-Kabel 70 m @ 4k 30Hz, 60 m @ 4k 60Hz
  • Leistungsaufnahme max. 7,4 W
  • Stromversorgung 12V 1A DC
  • Maße Transmitter 110 × 70 × 24,5 mm, Receiver 81 × 49 × 25 mm
