Intended use.
- Enables the connection of 2 HDMI sources such as PC, PS5 or Xbox Series X game console to one HDMI sink, e.g. to a TV set
- Input switching via button or automatically
- Power supply via USB (or through HDMI source

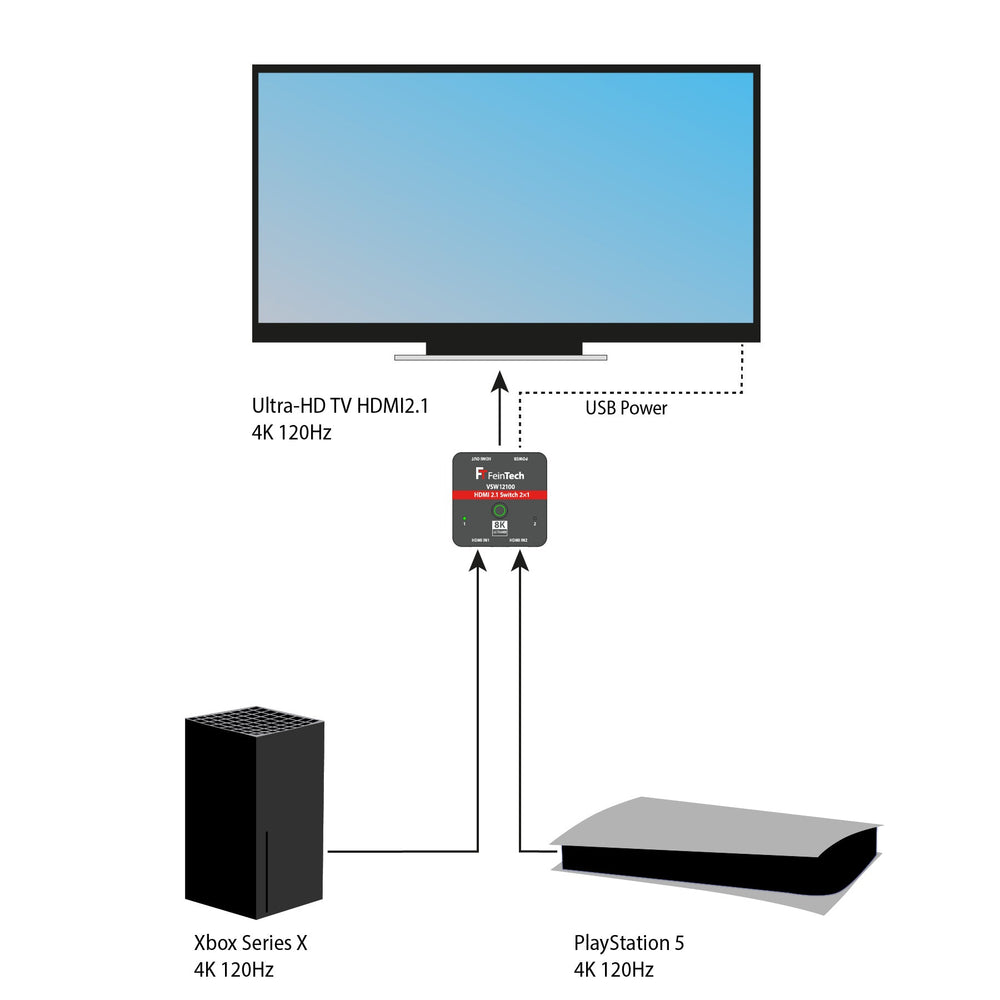

How it works:
This switcher allows you to use 2 players on one TV or monitor. This allows you to alternate between 2 game consoles such as PS5 and Xbox Series X without any loss if your display only has one free HDMI socket. All new gaming features like 4K 120Hz and VRR are supported! You can press the button to switch between the two inputs. Automatic switching between the HDMI inputs is also possible (not supported by all HDMI sources). A USB power source is necessary for the power supply. In some device constellations, this can be dispensed with.
Features and specifications:
- Supported HDMI 2.1 features: ALLM, VRR
- Maximum data rate: 48 Gbps
- Maximum videoformat 4K 120Hz YUV 4:4:4 12-bit or 8K 60Hz YUV 4:2:0 12-bit
- Supports HDR, HDR10, HDR10+, Dolby Vision
- Supports HDCP 2.3 copy protection, backwards compatible
- Supports all audioformats, including LPCM2.0–7.1, Dolby Digital Plus, Dolby TrueHD / Atmos, Dolby MAT, DTS, DTS-HD, DSD
- HDMI-CEC Passthrough
- Power supply via USB 5 V DC, power consumption < 0,5 W
- Maximum HDMI cable length at 8K / 4K 120Hz: 3 m
- Size: 6 × 6 × 1,2 cm
Please note: The HDMI ARC port of a soundbar is an HDMI output and cannot be used with an HDMI source. This switch cannot be connected directly to a soundbar that has only one HDMI port.

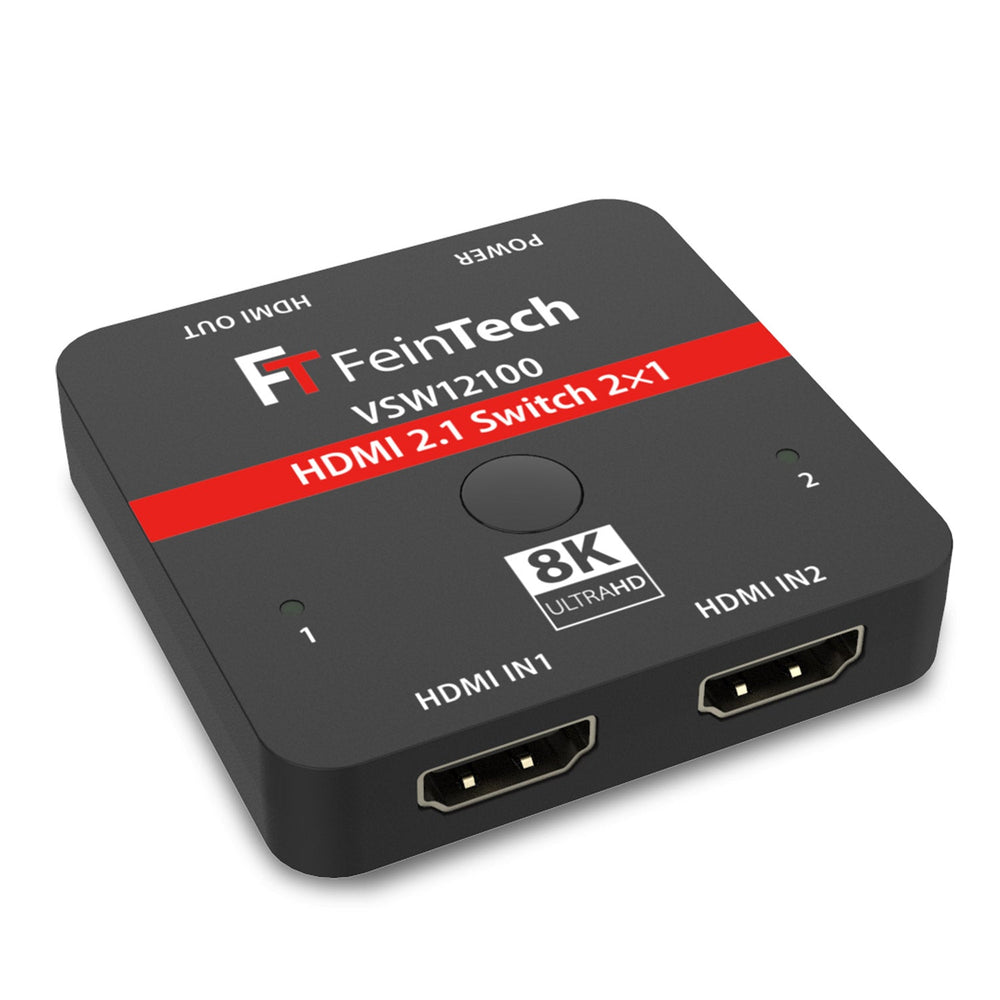

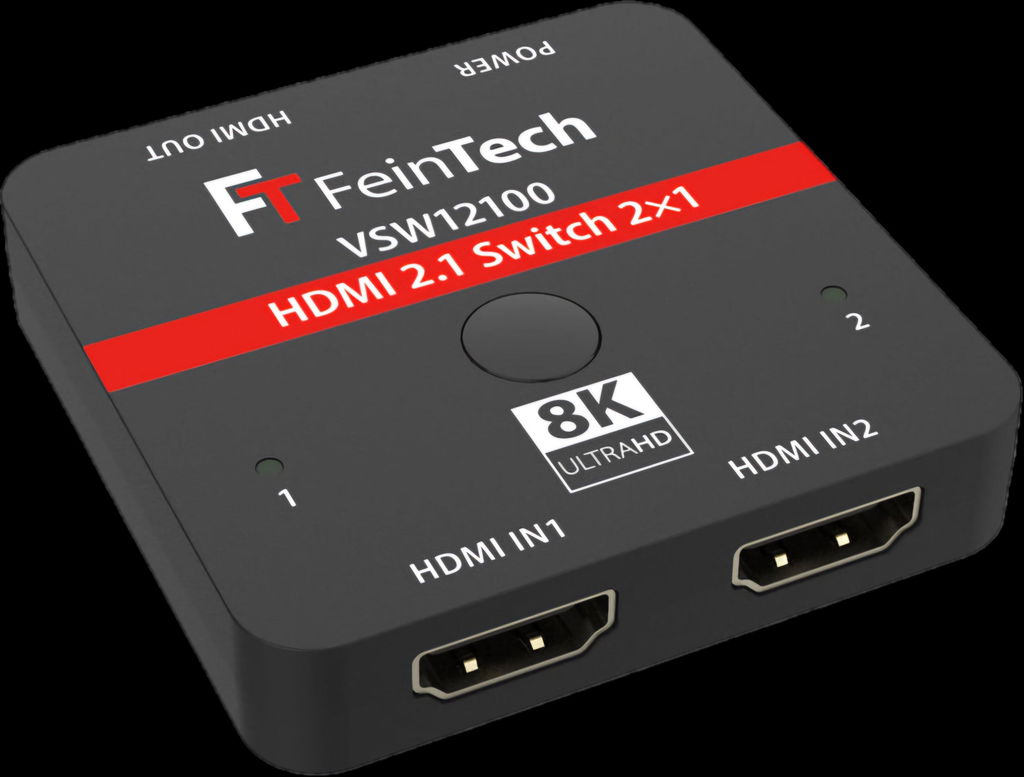

HDMI 2.1 Switch 2 In 1 Out
Genieße Auflösungen bis 8K 60Hz und 4K 120Hz
Automatische Umschaltung
