ATG00101 Audio Ground Isolator Sheath Current Filter 3.5 mm Jack

Eliminates audio hum between powered devices
  • For all audio connections with a 3.5 mm jack plug, e.g. computer, TV, car radio, smartphone, active speakers, Bluetooth receiver, stereo system
  • Eliminates ground loops without degrading the sound
  • Is simply inserted between the devices and can be placed inconspicuously
Regular price€11,99
/
Tax included. Shipping calculated at checkout.
  • In stock, ready to ship
  • Free shipping from 39 € in DE
  • 30 days return policy
  • Free returns

Shipping to: Germany

With an order value of 39 EUR or more (including VAT) we deliver free of charge within Germany. Below 39 EUR we calculate shipping costs of 4.99 EUR.

Shipping is via DHL or DPD. After shipping you will receive a link with the tracking code by email.

To receive your shipment at a DHL Packstation, please enter your postal number and the Packstation in the delivery address in addition to your first and last name. You can find more details under shipping.

In the case of a return, we will reimburse the costs or arrange for a free return. More information for a return or refund .

Shipping abroad

For deliveries outside of Germany, costs of at least EUR 9.99 will be incurred, depending on the country. The exact costs are displayed after selecting the country in the shopping cart.

You can find more information about shipping here .

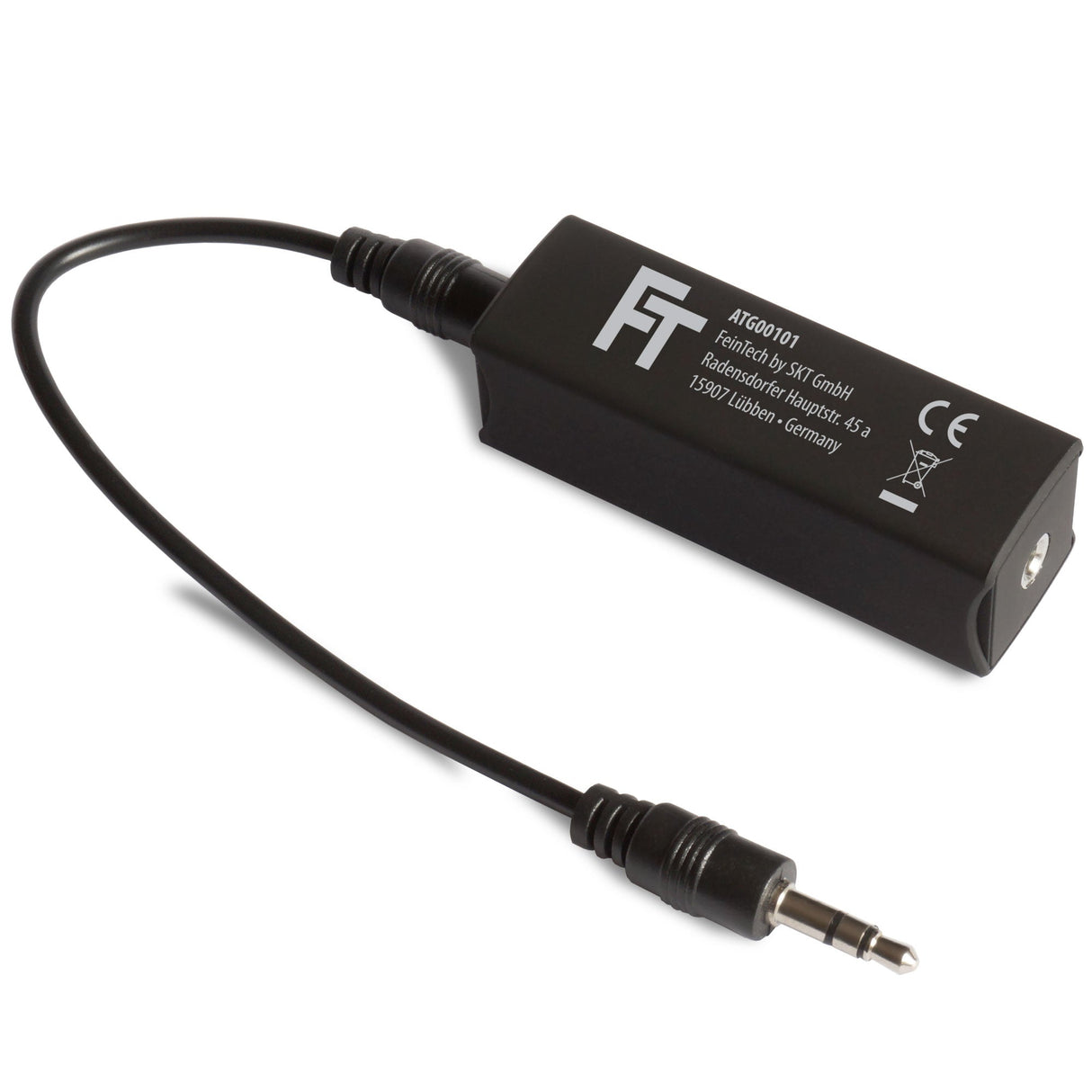

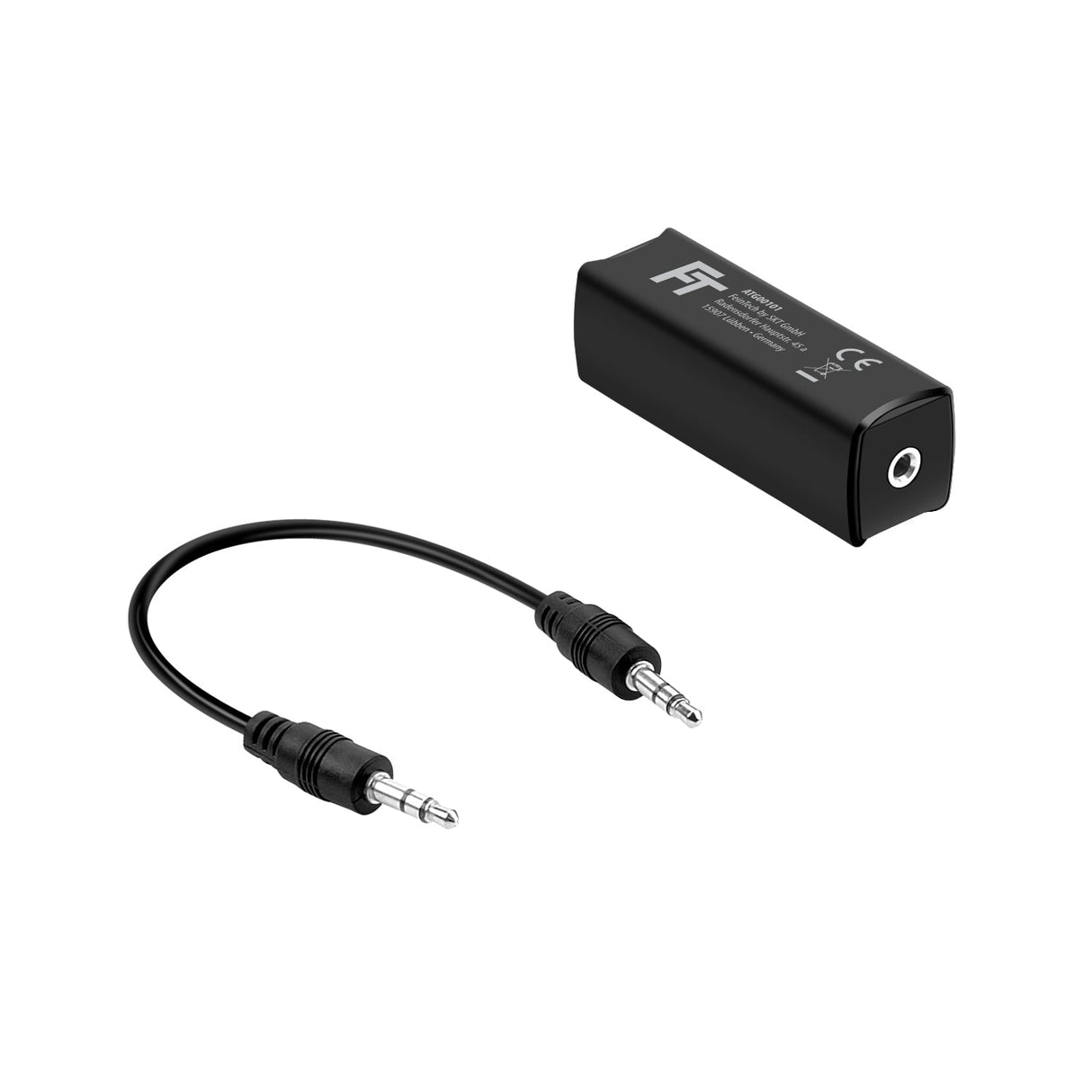

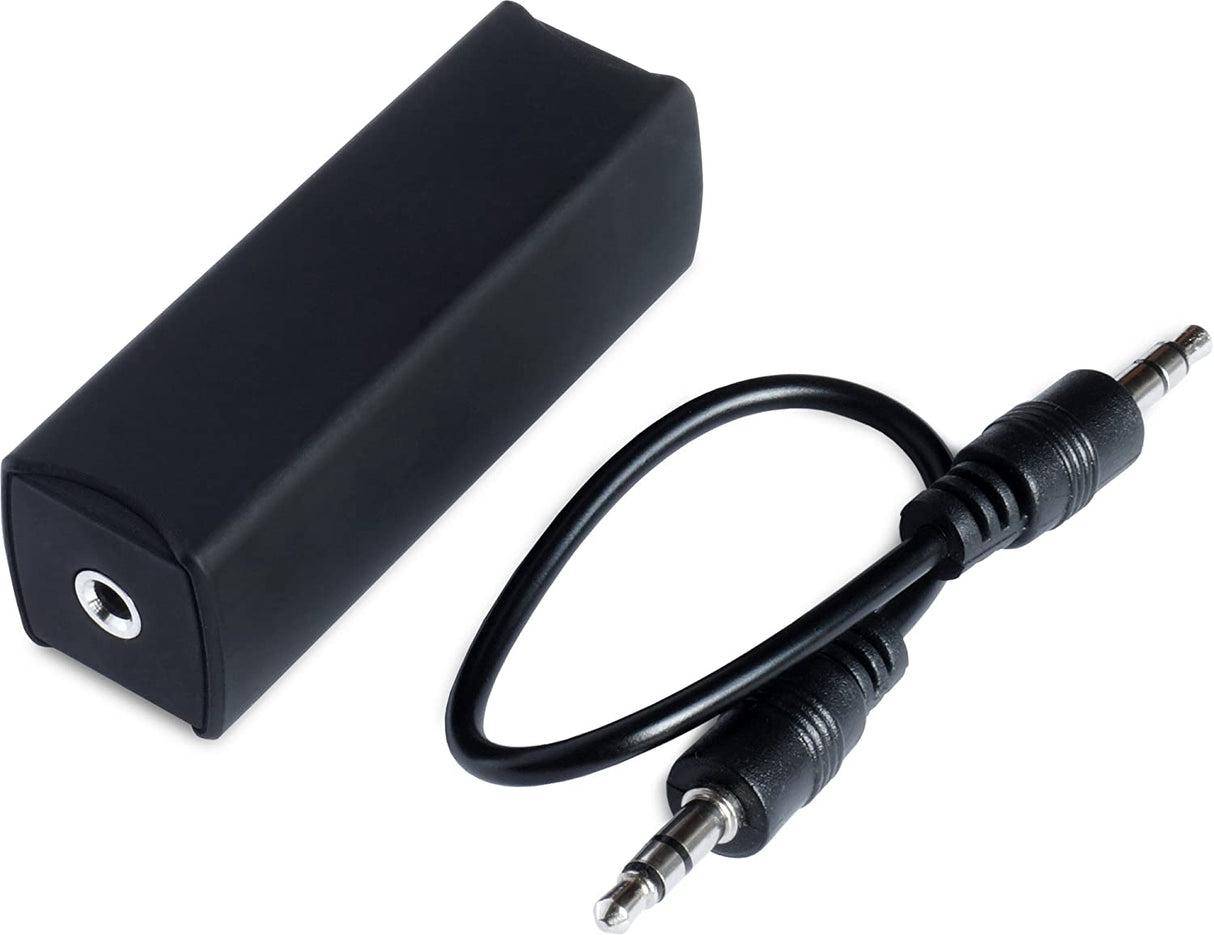

1x ATG00101 mass separator
1x jack cable 3.5 mm

What an audio ground isolator is used for

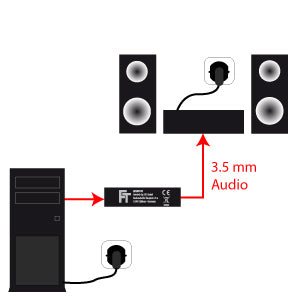

If 2 devices with protective contact plugs are connected via an audio cable, there is often sound interference. A compensating current that causes hum flows through the different ground potentials. Such devices can be, for example, computers and stereo systems. There is a similar effect if one of the devices is connected via an antenna connection, eg television, cable receiver, satellite receiver, car radio. In such cases, the audio ground isolator helps. The mass is galvanically isolated, so there is no longer any electrical connection between the devices. The audio signal is transmitted unaffected by this. This effectively removes background noise.

Filters in both directions

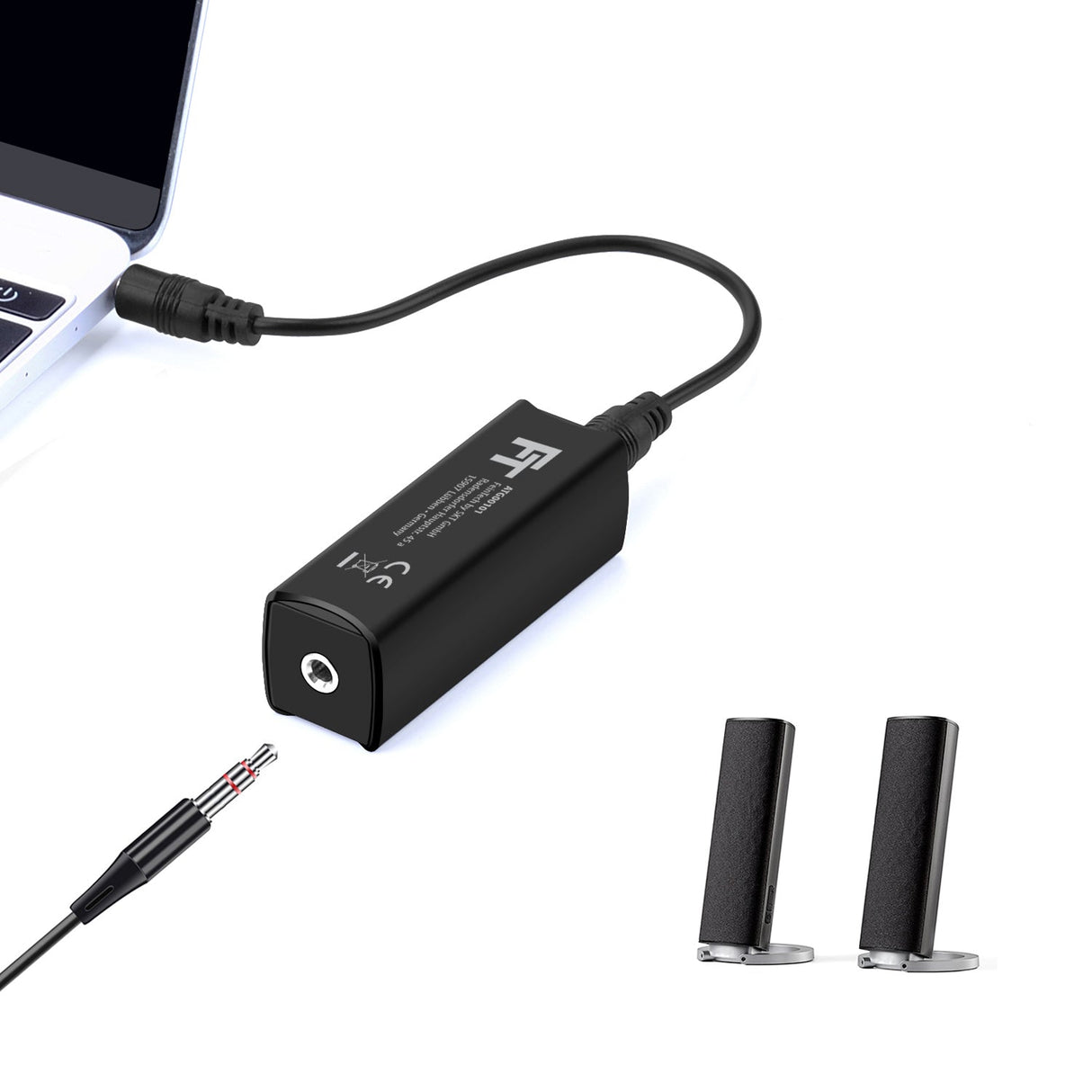

The ATG00100 works both ways and comes with a short connection cable. You can use it to connect the small adapter near the audio source or on the end device.

Prevents hum in audio between powered devices

  • Galvanically isolates the masses in audio connections and thus removes hum and sound interference
  • For all audio connections with a 3.5 mm jack plug, e.g. computer, TV, car radio, smartphone, active speakers, Bluetooth receiver, stereo system
  • Eliminates ground loops without degrading sound
  • Is simply inserted between the devices and can be placed inconspicuously (size only 6 x 2 x 2 cm)
  • No power supply required, no additional connection cable required


The ground isolator is used as an audio filter and eliminates hum and sound interference. Such noise often occurs when connecting audio devices that are connected to the power supply with protective contact plugs, e.g. computers and active speakers, televisions and AV receivers, PCs and monitors. The cause is a compensating current that flows between the different potentials of the devices. The inductive transmission in the ATG00101 interrupts an electrical connection and prevents such disturbing currents ("50 Hz hum").

The ground isolation filter can also eliminate unwanted noise for audio connections in vehicles. There are sound problems in the car when music is played from the smartphone and it is being charged at the same time. The ATG00101 has real galvanic isolation. It is connected anywhere between the two devices using the included short audio cable (3.5 mm) jack. Due to the compact dimensions of 60 x 20 x 20 mm, the filter is easy to store.

Technical data:

  • Impedance 600 ohms
  • Frequency range 20 ... 20,000 Hz

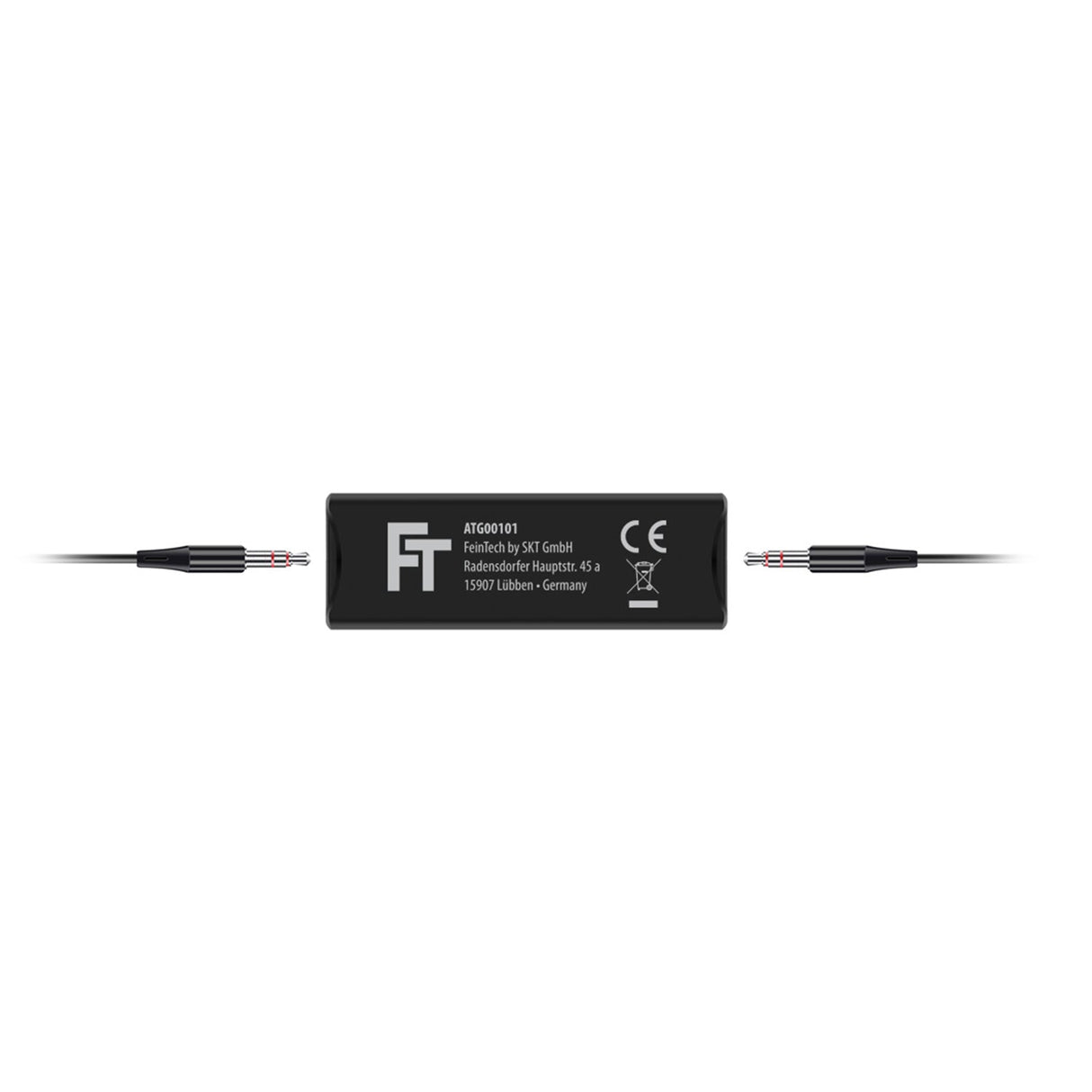

  • Connections: 2 x 3.5 mm stereo jack, bi-directional

Customer Reviews

Based on 10 reviews
90%
(9)
0%
(0)
10%
(1)
0%
(0)
0%
(0)
M
Matthias Pretzsch
Störgeräusche verschwunden

Begeisterung, Danke Markus..
hab den Filter zwischen Soundkarte und Receiver geklemmt.. ich bin glücklich

M
Matthias Rößler
Okay..

Gerät ok, qualität vom Kabel könnte besser sein

A
Anonym
EINWANDFREI, ATG00101 Audio Masse-Trennglied

betreibe einen Nobsound NS-01G PRO Mini Digital Amplifier 2x50W am Kopfhörerausgang eines alten Samsung TV UE40F6470 mit den Lautsprechern der Mini Hifi Anlage Grundig CMS 5000 BT DAB+. Hat sehr laut und pegelabhängig gebrummt. eine klassische Brummschleife zwischen Sat Anlage und TV. Die Masse vom Sat Antenneneingang läßt sich bekanntlich nicht durch einen Mantelstromfilter galvanisch trennen, weil sonst der Sat Reseiver bzw. LNB nicht mehr schaltet. Da hilft nur ein Audio Masse-Trennglied - UND POTZ BLITZ, den FeinTech ATG00101 angestöpselt und kein, ALSO KEIN hörbares Brummen mehr. Ich höre auch keine Klangbeeinträchtigung, wobei ein Oszi sicher eine darstellen würde. Bin zufrieden, kann ich empfehlen.

C
Cat. H.
It works really!

Endlich Klinkenkabel Masse Entkoppler welcher auch wirklich funktioniert und das so gut als würde man ein Toslink-Kabel für die Audioübertragung benutzen.

A
Andreas Müller

Sehr schnelle Lieferung. TOP
